Synthetic base oil for compressor lubricant (Water Insoluble PAG)
Water Insoluble PAG for compressor lubricant
Colorless homopolymer has low frication coefficient and middle extreme pressure and anti-wear property.
Good compatibility with synthetic rubber.

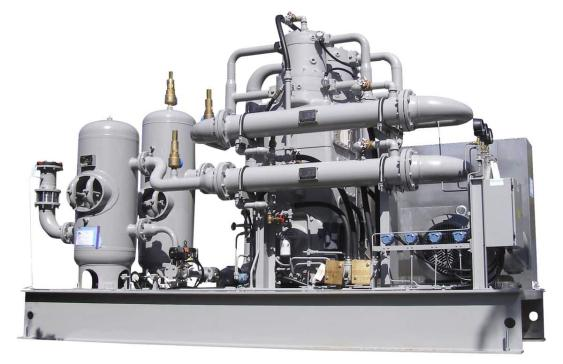

Widely used in automotive refrigeration compressor ,synthetic air compressor and gas compressor oil.
Excellent cold flow properties, Pour point could reach -50℃
High viscosity index, Keep good viscosity in warm compressor, Wide operate temperature 90－120℃
Faster heat dissipation, Low work temperature
Good dissolving capacity, Cleaning valve ,cleaning aperture
Outstanding carrying ability , No residue and sludge, More safe and greener
Very long working life extends oil drain interval more than 8000hrs
Very low solubility with CO2, N2 and natural gas ensure system effectiveness
Good compatibility with R134A
|
SDM-005A |
SDM-01A |
PAG-46 |
SDM-56 |
SDM-02A |
SDM-03A |
SDM-035A |
SDM-04A |
SDD-210 |
SDD-220 |
|
|
Acid value (mgKOH/g)≤ |
0.03 |
0.03 |
0.03 |
0.03 |
0.03 |
0.03 |
0.03 |
0.03 |
0.03 |
0.03 |
|
Viscosity 40℃ (mm2/s) |
24 |
32 |
46 |
56 |
68 |
100 |
125 |
150 |
68 |
150 |
|
Viscosity 100℃ (mm2/s) |
5.3 |
6 |
9.6 |
12 |
13 |
17.5 |
21.8 |
26 |
11 |
24 |
|
Viscosity index |
160 |
160 |
180 |
180 |
180 |
190 |
195 |
200 |
155 |
190 |
|
Flash point (℃) |
200 |
200 |
210 |
210 |
215 |
220 |
220 |
220 |
220 |
220 |
|
Pour point (℃) |
-55 |
-46 |
-40 |
-40 |
-45 |
-45 |
-40 |
-40 |
-40 |
-36 |
|
Color (APHA) |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
|
Moisture (ppm)≤ |
300 |
300 |
300 |
300 |
300 |
300 |
300 |
300 |
300 |
300 |
